Martin MAC One in EPS

MAC One sets a new standard for compact moving heads, delivering powerful beam, wash and eye‑candy effects through its striking Fresnel lens. Lightweight, compact and versatile, it brings high performance to any stage or event.

It offers a narrow, high‑intensity beam comparable to much larger fixtures, a smooth 4–27° zoom wash, and a unique backlight system with 24 RGB LEDs for standout visual effects.

With 2,500 lumens, 375,000 cd beam intensity, and a custom 120 W RGBL engine, MAC One delivers superior light and color quality compared to traditional RGBW fixtures. Its low weight and compact form make it easy to rig, transport and use in large quantities, reducing logistical costs.

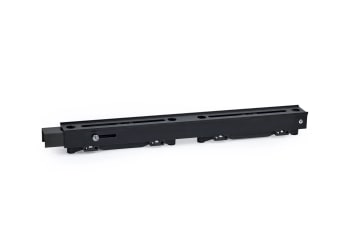

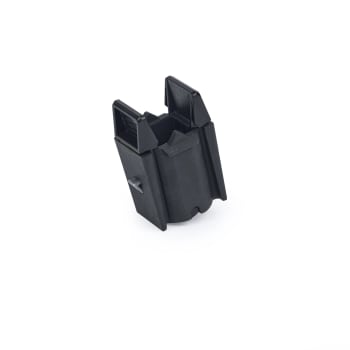

MAC One is compatible with the VDO Grid Mount System, Martin fourbar and matrix accessories, and supports DMX, Art‑Net, sACN and Martin P3 for flexible control.

Ideal for lighting designers, rental companies, and event organizers wanting big looks, compact setups, and striking eye‑candy effects.

Specifications

Physical

MAC One FixtureWidth (across yoke): 226 mm (8.90 in.)

Width (base): 254 mm (10.00 in.)

Height (head forward): 297 mm (11.69 in.)

Height (maximum): 349 mm (13.74 in.)

Depth (head): 220 mm (8.66 in.)

Depth (base): 177 mm (6.97 in.)

Minimum center-to-center distance in side-by-side installation: 300 mm (11.81 in.)

Weight: 4.40 kg (9.70 lbs.)

Dynamic Effects

Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Beam Dimming options: Choice of four dimming curves
Beam Color Mixing: RGB, independently variable 0 - 100%
Beam Color Temperature Control: Variable 2,000 – 12,850 K
Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
Zoom: Motorized with 1:5 zoom ratio, including zoom pulse effect
Pan: Motorized 540°Tilt: Motorized 225°Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Backlight Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
Backlight Dimming options: Choice of four dimming curves
Backlight Color Mixing: RGB, independently variable 0 - 100%
Backlight Color Temperature Control: Variable 2,000 – 12,850 K
Backlight Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Backlight Virtual Color wheel: 48 color presets, continuous rotation & random color
Backlight PixelMapping: Individual RGB control of each of the 24
Backlight pixels
Backlight P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Pre-programmed effects: Two ranges of FX on Beam, Backlight or Combination; independent or synchronized/combined
LED Frequency control: Variable LED PWM control

Features

Light Source

Custom in-house developed 120 W RGBL (Red, Green, Blue, Lime) LED offering higher light quality (CRI, TM-30, TLCI) than RGBW

Lumen Output: 2500 lm

Intensity: 375,000 cd in narrow beam

Backlight Effect: 24 x 0.25 W RGB LED

Fully calibrated using Martin's Full Gamut Color Calibration

Flicker-Free operation

LED Driver frequency adjustable for demanding applications

Optics

150 mm Fresnel lens

4 to 27 degrees zoom

Defined narrow beam

Soft edge wide wash

Minimal stray light

Minimal color temperature shift from center to edge

SoftLens accessory included

Color Palette

RGBL color mixing with very bright and vibrant saturated colors, as well as soft pastels and white tones

Calibrated and Extended Color Modes

Calibrated Color Temperature Control: 2,000 – 12,850 K

Calibrated Green Magenta Shift (Tint) Control: Δuv -0.05 – +0.05

Tungsten Emulation Option

Virtual Color Wheel

Dynamic Effects

More than 200 built-in FX macros with control of foreground color, background color, speed and direction

P3 video mapping of fixture Beam and/or Fresnel Backlight pixels

P3 Mix allowing crossfade between video looks and DMX looks

Extreme speed pan, tilt and zoom

Cooling and Noise

Ultra-quiet cooling system (no fans in base, only fans in head)

Theater / Broadcast mode at just 23.0 dB(A)

Low noise pan, tilt and zoom mode

Construction

Weight: 4.40 kg / 9.70 lbs.

Dimensions: 254 mm (10.00 in.) x 297 mm (11.69 in.) x 220 mm (8.66 in.)

Control

DMX, Art-Net, sACN & Martin P3 control

Fail-safe bypass on Ethernet ports

Battery-powered display for setup and configuration

Installation

Single omega bracket attachment

M12 threaded holes for direct clamp attachment or attachment to four-bar accessory

Optional four-bar accessory

Optional VDO Grid Mount Ring accessory
