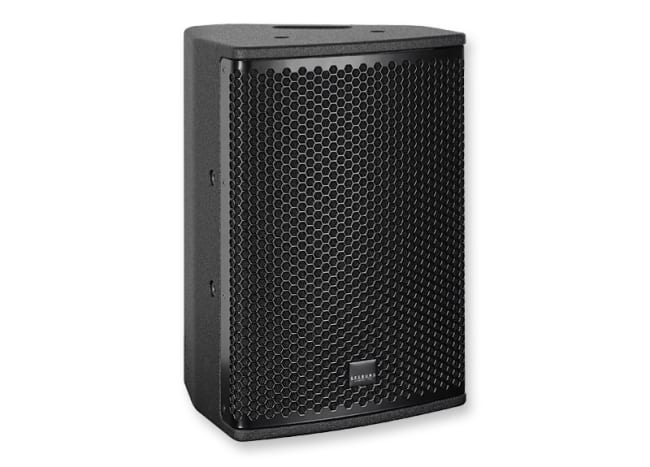

Seeburg X4, 10" Coax Multifunctional
Produktnummer: 858595
Lagerbeholdning:
inkl. mva.
Kompakt 2-veis høyttaler som passer til svært mange oppgaver. Den koaksiale konfigurasjonen i kombinasjon med et nøye designet stort horn sikrer absolutt konstant respons også utenfor hovedaksen.
| Speaker Components | 10“ Nd (3“ VC) / 1“ Nd (1,7“ VC) | |
| Description | Multifunctional Coaxial Sound System | |
| Power AES / Peak | 350 W / 1000 W | |
| Amp Power AES | - - - | |
| Impedance nominal | 8 Ω | |
| Rated Current | - - - | |
| SPL 1 W / Peak @ 1 m | 97 dB / 127 dB | |
| SPL Peak@1m | - - - | |
| Max. Input Signal | - - - | |
| DSP | - - - | |
| AD / DA | - - - | |
| Latency | - - - | |
| Usable Range | 60 Hz - 19 kHz (-6 dB) | |
| Tuning Frequency excursion minimum | 70 Hz | |
| X - Overpoint acoustical | 1,2 kHz | |
| Coverage horizontal / vertical | 80° x 60° - rotatable | |
| Max. Splay Angle | - - - | |
| Connectors | 2 x Neutrik Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop thru | |
| Handles | 2 x | |
| Rigging / Fittings | 9 x M10 To be used with MultiRigg™ 35 mm pole mount | |
| Weight | 12,5 kg | |
| Size height x width x depth | 45,0 x 31,0 x 29,0 cm | |
| Order No. | 01093 |
